技术规格及配置
TECHNICAL SPECIFICATIONS

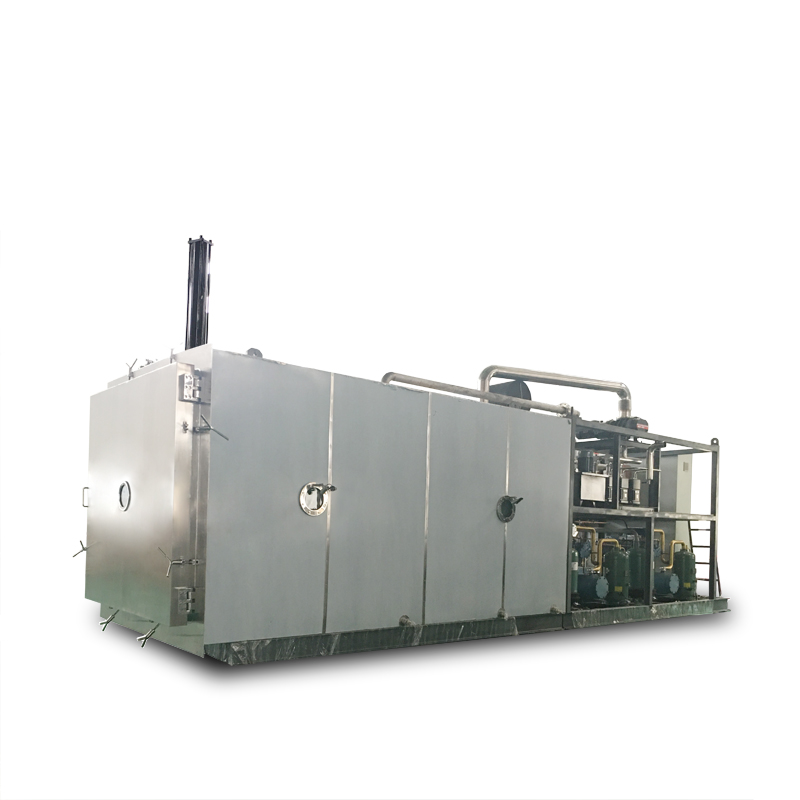

TF-LYO-40(40平方)
General Detail 总述 | ||
Sr. No. | Description 描述 | Specifications 规格 |
1 | Mode 型号 | TF-LYO-40E |
2 | area (sq. m) 面积 | 41.86㎡ |
3 | Processing capacity(approx.) 处理量(大约) | 400KG |
4 | 装瓶能力 | 172,000 units of vials 16mm diameter 外径16毫米冻干瓶172,000瓶 |
91,000 units of vials 22mm diameter 外径22毫米冻干瓶91,000瓶 | ||
5 | Maximum ice capacity 最大捕冰力 | 800KG |
6 | Stoppering 压塞 | Hydraulic stoppering 液压压塞 |
7 | Control 控制方式 | Microprocessor 微机处理【无菌窒增加一套扳层升降操作系统】 |
7 | Dimension of unit (approx.) (L × W × H) (mm) 外型尺寸(大约)(长×宽×高) | 9,450 × 3200 × 4,600 (Final dimension based on design) (以最终设计尺寸为准) |
8 | Weight (approx.) 重量(大约) | 28,000kg |
9 | Chamber type/Material 冻干箱外型 | Rectangular 长方体 |
10 | Shelves Temperature range 板层温度范围 | -50℃ to + 80℃ |
11 | Condenser Final temperature 冷凝器极限温度 | -65℃ |
12 | Final vacuum 极限真空 | ≤1×10 -2mbar |
13 | Compressor 压缩机 | Bitzer |
14 | Vacuum pump 真空泵 | Baosi |
15 | PLC 可编程控制器 | Omron 欧姆龙 |
16 | Electricity - total electrical load 总装机功率 | 211kW (380VAC 50HZ) |
